Chip Zener Diode-Rating -
Chip Zener Diode - Data Spec.
|
Written by Zener Diode SOD-123
|
Monday, 12 May 2008 16:19 |
Zener Diode SOD-123 | | MMSZ5221B ~ MMSZ5259B ( 2V4 ~ 39V) | | | | FEATURE | Planer Die Construction | 500mW Power Dissipation | 2.4V - 39V Nominal Zener Voltage | 5% Standard Vz Tolerance | Designed for Surface Mount Application | Plastic Material 'UL" Recognition Flammability | Classification 94V-O |
| MECHANICAL DATA Case: SOD-123, Molded Plastic | Terminals: Plated Leads Solderable per | MIL-STD-202, Method 208 | Polarity: Cathode Band | Weight: 0.01 grams (approx) | Marking: Device Code. | Lead Free: For RoHS . Lead Free Version, | Add "LF" suffix to Part Number. |

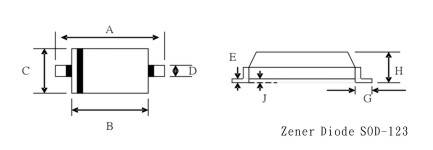

| DIMENSION: | | | Type SOD-123 | Dim | Min | Max | A | 3.6 | 3.9 | B | 2.5 | 2.8 | C | 1.4 | 1.8 | D | 0.5 | 0.7 | E | - | 0.2 | G | 0.4 | - | H | 0.95 | 1.35 | J | - | 0.12 | All Dimensions in mm |
| | | MAXIMUM RATINGS | @TA=25℃ unless otherwise specified |
| Cheracteristic | Symbol | Value | Unit | Peak Pulse Power Dissipation at TA = 25℃ (Note) | Pd | 500 | m/W | Forward Voltage @ IF = 10mA | VF | 0.9 | V | Thermal Resistance Junction to Ambient ( Note 1) | RθJA | 340 | - | Operation and Storage Temperature Range | Tj, TSTG | -65 to +150 | - |
|
|
