| Carbon Film Resistors - CFR Series | | | | | | |
| | | | | | | | | |  |
| CARBON FILM RESISTORS - CFR Series | | | | | |
| | | | | | | | | |
| Type | Popwer | | FEATURES | | | | |
| CFR-12: | 1/6W; 1/8W | | Industry's lower cost and deliver from stock. | | |
| CFR-25: | 1/4W | | Exceptional long-term stability. | | | |
| CFR-50: | 1/2W | | Exceeds carbon comp MIL-R-11 performance. | | |
| CFR-100: | 1W | | Standard tolerance: | ±2%, | ±5%. | | | | |
| CFR-200: | 2W | | Variety of packing-bulk, strip pack, 26mm and 52mm tape and reel, cut and formed or radial Pana. |
| CFR-300: | 3W | | | | | | | | | |
| | | | | | | | | | | |
| INTRODUCTION | | | | | | | | | | |
| | | | | | | | | | | |
| Featuring consistency and stably-controlled, these carbon film resistors with reasonable prices are widely & largely used in the electronic, electrical and information industries.This resistor is a ceramic bar tightly coated with a carbon film which is composed of carbon separated from organic compound through the treatment of high-temperature vacuum.After the carbon-coated bar is connected with proper joint and engraved with grooves, its surface is finished with epoxy resin so that the bar is enclosed with a protective film. |
|
|
|
|
| | | | | | | | | | | |
| DIMENSIONS: | | | | | | | | | | |
| | | | | | | | | | | |
| STYLE | DIMENSION (mm) | POWER RATING | VALUE | |  |
| L | ΦD | H | Φd | (Watt) | RANGE | |
| CFR-12 | 3.2±0.2 | 1.8±0.3 | 28±2 | 0.43±0.02 | 1/6W ; 1/8W | 1~10MΩ | |
| CFR-25 | 6.0±0.2 | 2.3±0.3 | 28±2 | 0.5±0.02 | 1/4W | 1~10MΩ | |
| CFR-50 | 9±0.5 | 3.2±0.3 | 26±2 | 0.6±0.02 | 1/2W | 1~10MΩ | |
| CFR-100 | 11.0±0.5 | 4.5±0.5 | 35±2 | 0.7±0.02 | 1W | 1~10MΩ | |
| CFR-200 | 15.0±0.5 | 5.0±0.5 | 32±2 | 0.8±0.02 | 2W | 1~10MΩ | |
| CFR-300 | 17.0±0.5 | 6.0±0.5 | 32±2 | 0.8±0.02 | 3W | 1~10MΩ | |
| | | | | | | | | | | |
| ELECTRICAL CHARACTERISTICS: | | | | | | | | |
| | | | | | | | | | | |
| Style | CR-12 | CR-25 | CR-50 | CR-100 | CR-100 | CR-300 | | |

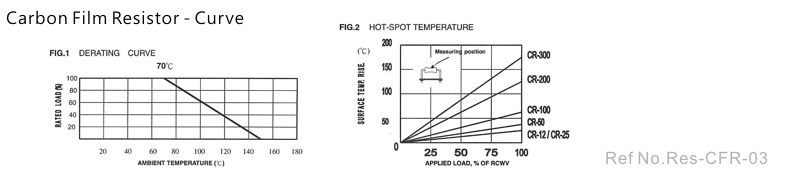

| Power Rating 70oC | 1/6; 1/8W | 1/4W | 1/2W | 1W | 2W | 3W | | |
| Operating Temp. Range | -55oC ~ +155oC | | |
| Max. Working Voltage | 200V | 250V | 350V | 500V | 500V | 600V | | |
| Max. Overload Voltage | 400V | 600V | 700V | 1000V | 1000V | 500V | | |
| Dielectric Withstanding Voltage (AC) | 400V | 500V | 700V | 1000V | 1000V | 1000V | | |
| Max. Intermittence Overload Voltage | 500V | 600V | 700V | 1000V | 1000V | 1000V | | |
| T.C.R. | CR-12 /CR-25 /CR-50(Ω) | CR-100 /CR-200 /CR-300 (Ω) | | |
| (PPM) | 100K down | 100K~1M | 1M up | 100K down | 100K~1M | 1M up | | |
| | -0.7 | 0 ~ -700 | 0 ~ -1500 | +350 ~ -500 | 0 ~ -700 | 0 ~ -1500 | | |
| | | | | | | | | | | |
| ENVIRONMENTAL CHARACTERISTICS : | | | | | | | |
| | | | | | | | | | | |
| PERFORMANCE TEST | TEST METHOD | APPRAISE |
| Short Time Overload | JIS-C-5202 5.5 : 2.5 times RCWV for 5 seconds | ±(0.75%+0.05)Ω |
| Dielectric Withstanding V. | JIS-C-5202 5.7 : in V-Block for 60 seconds | By Type |
| Temperature Coefficient | JIS-C-5202 5.2 : -55oC ~+155oC | By Type |
| Insulation Resistance | JIS-C-5202 5.6 : in V-Block | ≧1000 MΩ |
| Solderability | JIS-C-5202 6.5 : 230oC for 5±0.5 seconds | 95% min. coverage |
| Resistance to Solvent | JIS-C-5202 6.9 : Trichroethance for 1 min. with ultrasonic | no deterioration |
| Terminal Strength | Direct load for 10 sec. In the direction of the terminal leads | ≧2.5KG/24.5N |
| Pulse Overload | JIS-C-5202 5.8 : 4 time RCWV 10000 cycles(1 sec.on, 25 sec.off) | ±(2%+0.05)Ω |
| Load Life in Humidity | JIS-C-5202 7.9 : 40±2oC, 90~95% RH at RCWV for 1000 hrs | ±(3%+0.05)Ω |
| (1.5hrs. on, 0.5 hrs. off) |
| Load Life | JIS-C-5202 7.10 : 70oC at RCWV for 1000hrs (1.5hrs.on, 0.5hrs.off) | ±(3%+0.05)Ω |
| Temperature Cycling | | ±(1%+0.05)Ω |
| Soldering Heat | | ±(1%+0.05)Ω |
| | | | | | | | | | | |
 |
|
|
| | | | | | | | | | | |
 |
