Miniature Style Resistors - MOS Series

MINIATURE STYLE RESISTORS - MOS. Series

POWER RATING:
1/4WS, 1/2WS, 1WS, 2WS, 3WS

FEATURES
Low cost, high performance.
High power with small size for significant space savings.
Excellent long - term stability.
Variety of packing - bulk, strip pack, 26mm and 52mm tape and reel, cut and formed or radial Pana.

INTRODUCTION
The miniature series has increased by 30% the Aluminum into the Ceramic Bar. They can offer excellent performance in applications where stability and uniformity of characteristics are desired in high terperature, resistant to humidity and shock testing.


DIMENSIONS:

STYLE	DIMENSION (mm)				POWER RATING
STYLE	L	ΦD	H	Φd	(Watt)
25S	3.2±0.2	1.8±0.3	28±2	0.430.02	1/4W
50S	6.0±0.2	2.3±0.3	28±2	0.50.02	1/2W
100S	9±0.5	3.2±0.5	26±2	0.60.02	1W
200S	11.0±0.5	4.5±0.5	35±2	0.70.02	2W
300S	15.0±0.5	5.0±0.5	32±2	0.80.02	3W
500S	17.0±0.5	6.0±0.5	38±2	0.80.02	5W
700S	25±1	8.0±0.5	38±2	0.80.02	7W

ELECTRICAL CHARACTERISTICS:

MOS SERIES:
Style			MOS-50	MOS-100	MOS-200	MOS-300	MOS-500	MOS-700
Power Rating 70^oC			1/2WS	1WS	2WS	3WS	5WS	7WS
Operating Temp. Range			-55^oC ~ +155^oC
Max. Working Voltage			250V	350V	350V	500V	500V	750V
Max. Overload Voltage			600V	700V	700V	1000V	1000V	1000V
Dielectric Withstanding Voltage (AC)			350V	350V	500V	1000V	1000V	1000V
Max. Intermittence Overload Voltage			600V	700V	1000V	1000V	1000V	1000V
Value Range:± 2%, ±5%			1Ω ~510KΩ
Temp. Coefficient			±350ppm
* The listed resistance range for standard resistance, below or over this resistance is on request.

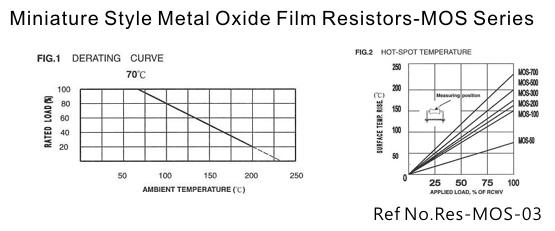

ENVIRONMENTAL CHARACTERISTICS :

PERFORMANCE TEST			TEST METHOD						APPRAISE
Short Time Overload			JIS-C-5202 5.5 : 2.5 times RCWV for 5 seconds						±(0.75%+0.05)Ω
Dielectric Withstanding V.			JIS-C-5202 5.7 : in V-Block for 60 seconds						By Type
Temperature Coefficient			JIS-C-5202 5.2 : -55^oC ~+155^oC						By Type
Insulation Resistance			JIS-C-5202 5.6 : in V-Block						≧1000 MΩ
Solderability			JIS-C-5202 6.5 : 230^oC for 5±0.5 seconds						95% min. coverage
Resistance to Solvent			JIS-C-5202 6.9 : Trichroethance for 1 min. with ultrasonic						no deterioration
Terminal Strength			Direct load for 10 sec. In the direction of the terminal leads						≧2.5KG/24.5N
Pulse Overload			JIS-C-5202 5.8 : 4 time RCWV 10000 cycles(1 sec.on, 25 sec.off)						±(2%+0.05)Ω
Load Life in Humidity			JIS-C-5202 7.9 : 40±2^oC, 90~95% RH at RCWV for 1000 hrs						±(3%+0.05)Ω
Load Life in Humidity			(1.5hrs. on, 0.5 hrs. off)						±(3%+0.05)Ω
Load Life			JIS-C-5202 7.10 : 70^oC at RCWV for 1000hrs (1.5hrs.on, 0.5hrs.off)						±(3%+0.05)Ω
Temperature Cycling									±(1%+0.05)Ω
Soldering Heat									±(1%+0.05)Ω
