Thin Film Melf Metal Film Resistor - SCR Series Print
Resistor Series - Resistor Series
Written by MELF Resistor - MECF Series
Saturday, 19 July 2008 10:33

   Thin Film Metal Film Resistor - CSR Series

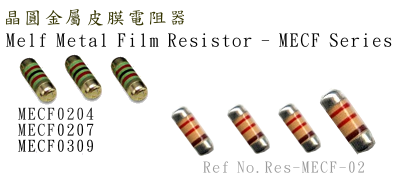

  Mini Melf Metal Film Resistor
   Thin Film Precision Resistor - CSR Series (Melf)


MECF1/8WT1KWJ

規格額定功率成品型態電阻阻值誤差值
ProductPowerT: TapingNominalResistance
CodeRatingP: BulkResistanceTolerance



品名

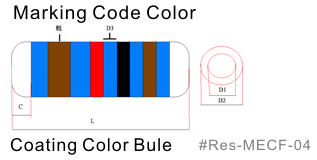

尺寸Dimensions(mm)





Type

L

C Min

D1

D2 Max

D3 Max





MECF 1/8W

3.5±0.2

0.5

1.40±0.15

1.55

1.25





204





MECF 1/4WS

3.5±0.2

0.5

1.40±0.15

1.55

1.25





204





MECF 1/4W

5.9±0.2

0.5

2.2±0.1

2.4

2.1













207













MECF 1/2WS

5.9±0.2

0.5

2.2±0.1

2.4

2.1

底漆:藍色         標示:色環標示(四條色環標示)





207

Coating colorBlue.  MarkingColor code(4 color band)



MECF 1WSS

5.9±0.2

0.5

2.2±0.1

2.4

2.1





207





MECF 1/2W

8.5±0.2

0.5

3.2±0.2

3.4

3





309





MECF 1WS

8.5±0.2

0.5

3.2±0.2

3.4

3





309





MECF2WSS

8.5±0.2

0.5

3.2±0.2

3.4

3













309





FEATURES Characteristics
SMD型式之碳素皮膜電阻器。                          Requirements    CharacteristicsTest Method (JIS-C5202)
SMD style carbon resistor.溫度係數 Temp.Coefficient (PPM /)±100, ±50, ±25, ±15, ±10.JIS-C(5202-5.2)
以圓柱形方便設計安裝。1.短時間過負荷Short Time Overload±(0.5%+0.05W)JIS-C(5202-5.5)
Free direction for mounting due to cylindrical design.2.斷續過負荷 Intermittent±(1.0%+0.05W)JIS-C(5202-5.8)
具高可焊性特殊電極端子。3.焊錫耐熱性 Resistance to Soldering heat±(0.5%+0.05W)JIS-C(5202-6.4)
High solder ability due to specially plated electrodes.4.焊錫性Solder ability95% Coverage minJIS-C(5202-6.5)
電極強度高於晶片電阻()5.耐溼負荷 Moisture Resistance±(2%+0.1W)JIS-C(5202-7.9)
Electrodes strength is higher than flat chip resistors.6.定格負荷 Load Life±(2%+0.1W)JIS-C(5202-7.10)
比厚膜晶片電阻()更低的雜音(current noise)
Lower current noise than thick film flat chip resistors.
有較佳的散熱性。
Suitable for reflow, flow and iron soldering.

if your need product of data specification please contact us.
如果您需要產品規格書請聯絡我們.
