Fusing Resistor - FR Series (溶斷電阻)

Fusible Resistor - FR Series

Feature:

◆

The fusible resistor is applited to safety circuit in

wide range of electronic sets.

◆

Complete flame proof construction.

Resistance range 0.22Ω ~ 560Ω

◆

Resistance tolerance ±2%, ±5%.

◆

There are 5 color bands on surface , The 5th bands

is in wgite color means wire wound fusible resistor.

◆

UL Approval

Flame-Proof Coating Type

FR (Standard Type)

FR (Non-Inductive Type)

From 0.5W ~ 3WS

(3) Tolarance

Codes

Resistance Tolerance

Part Numbering

±1%

±2%

05W

xxxR

±5%

(1)

(2)

(3)

(4)

(5)

(4) Packaging

(1) Product Type

Codes

Packing

Product Type

Product Value

Bulk

Fusing Resistor

Tape Box

(2) Power

(5) Resistance

Power Watt

Dimension DxL (mm)

Codes

Resistance (Ω)

(0.5W)

3.5x9mm

R100

0.1

1WS

3.5x9mm

1R00

4.5x11.5

100R

5.0x15.5

101R

100

3WS

5.0x15.5

102R

1000

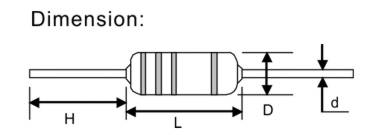

Dimension & Specifications

TYPE

Watt

Dimension (mm)

Max. Open

Withstanding

Resistance

D± 0.5

L± 1

H± 3

d± 0.05

Voltage

±2%(Ω)

±5%(Ω)

FR-1/2W

0.5W

2.3

6.3

0.5

200

400

4.7~560

2.2 ~ 560

FR-1WS

1WS

3.2

9.0

0.6

250

500

4.7~560

2.2 ~ 560

FR-1W

4.5

11.5

0.8

300

600

4.7~560

0.25 ~ 560

FR-2W

5.0

15.5

0.8

350

600

4.7~560

0.33 ~ 560

FR-3W

3WS

5.0

15.5

0.8

350

600

4.7~560

0.33 ~ 560
