Resistor Series
|
|
Written by High Voltage Resistor - HVR
|
|
Saturday, 15 November 2008 17:35 |

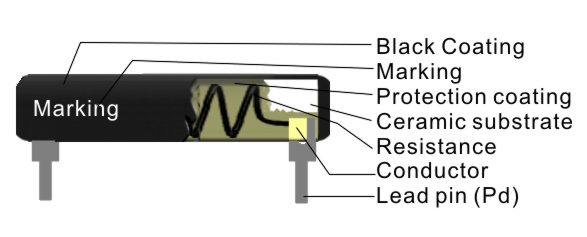

THICK FILM HIGH VOLTAGE RESISTOR - HVR SERIES | |  Thick Film High Voltage Resistor | | | | | | Feature: | | | | |  | | | (1) | Miniature and light weight | | | | (2) | Stable electrical capability, high | | | | (3) | Max. Operating Voltage 10KV(DC) | | | | (4) | Application Micro-wave oven and so on. | | | | | | | | | | | | | | | | | | | | | Type | A (Max) | B (Max) | C (Max) | Marking |  | S107M | 20.2mm | 3.5±0.5mm | 17.8±0.3mm | S107M | HV107M | 32.0mm | 4.5±0.5mm | 27.9±0.5mm | HV107M | | | | | | Resistance | | | | | | Marking | Resistor | Marking | Resistor | |
| 101 = | 100Ω | 105 = | 1M Ω | | 102 = | 1K Ω | 106 = | 10M Ω | | 103 = | 10K Ω | 107 = | 100M Ω | | 104 = | 100K Ω | 108 = | 1G Ω | | | | | |
|
|
Last Updated ( Tuesday, 25 November 2008 10:56 )
|
