ALUMINUM HOUSED. WIREWOUND RESISTORS

TYPE

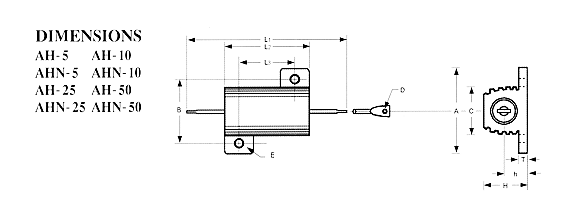

Dimensions (mm)

L1

L2

L3

A

B

C

D

E

H

h

T

±1

±0.8

±1

±0.8

±1

±0.1

±0.3

±1

±1

±0.2

AH-5

28.6

15.3

11.3

16.5

12.4

8.5

1.3

2.4

8.2

4

1.6

AHN-5

AH-10

35

19

14.3

20.4

15.9

11

2.2

2.4

10

5

2

AHN-10

AH-25

49

27

18.3

27.2

19.8

14

2.2

3.2

14

6.5

2

AHN-25

AH-50

70

50

39.7

29.2

21.5

16

2.2

3.2

16

7

2
